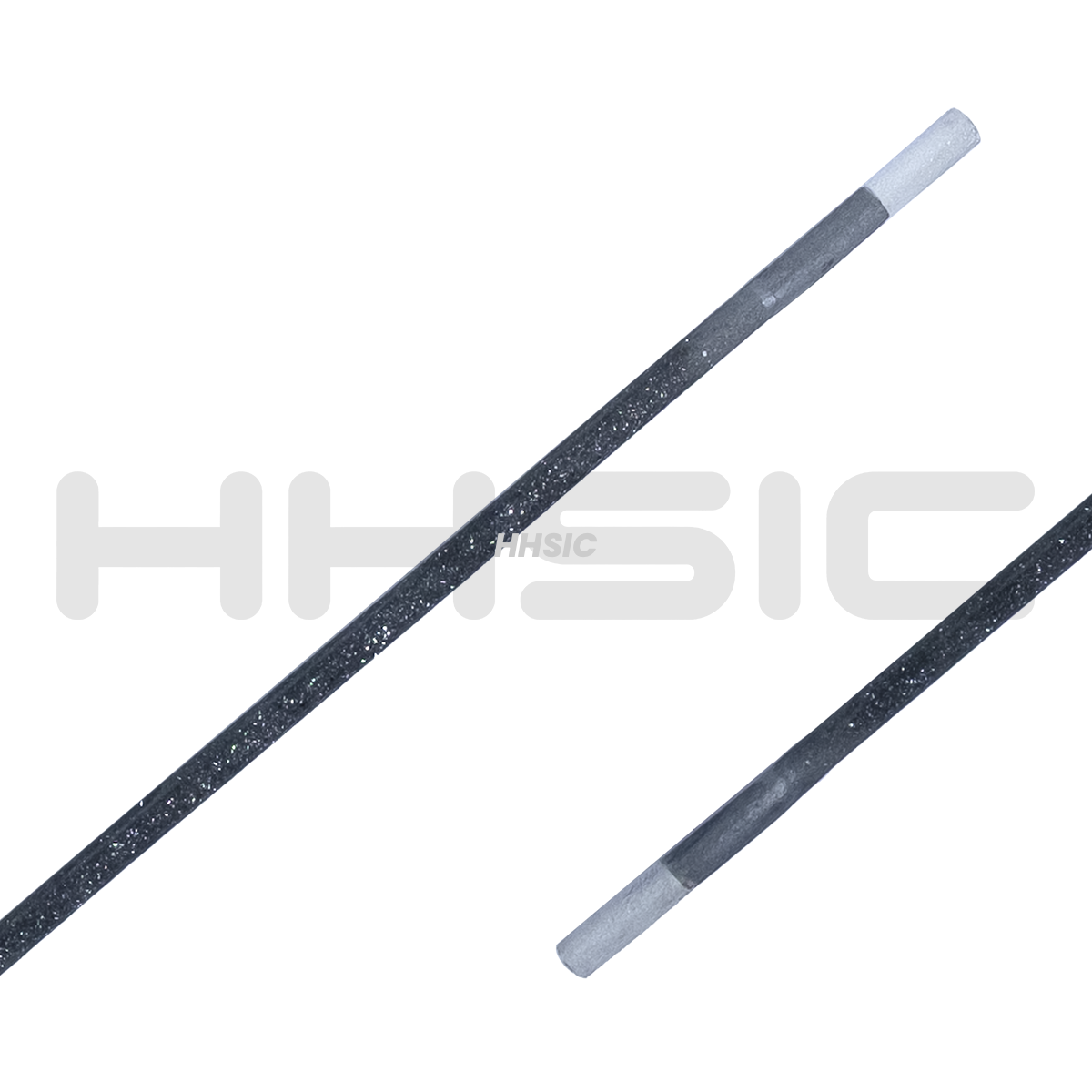

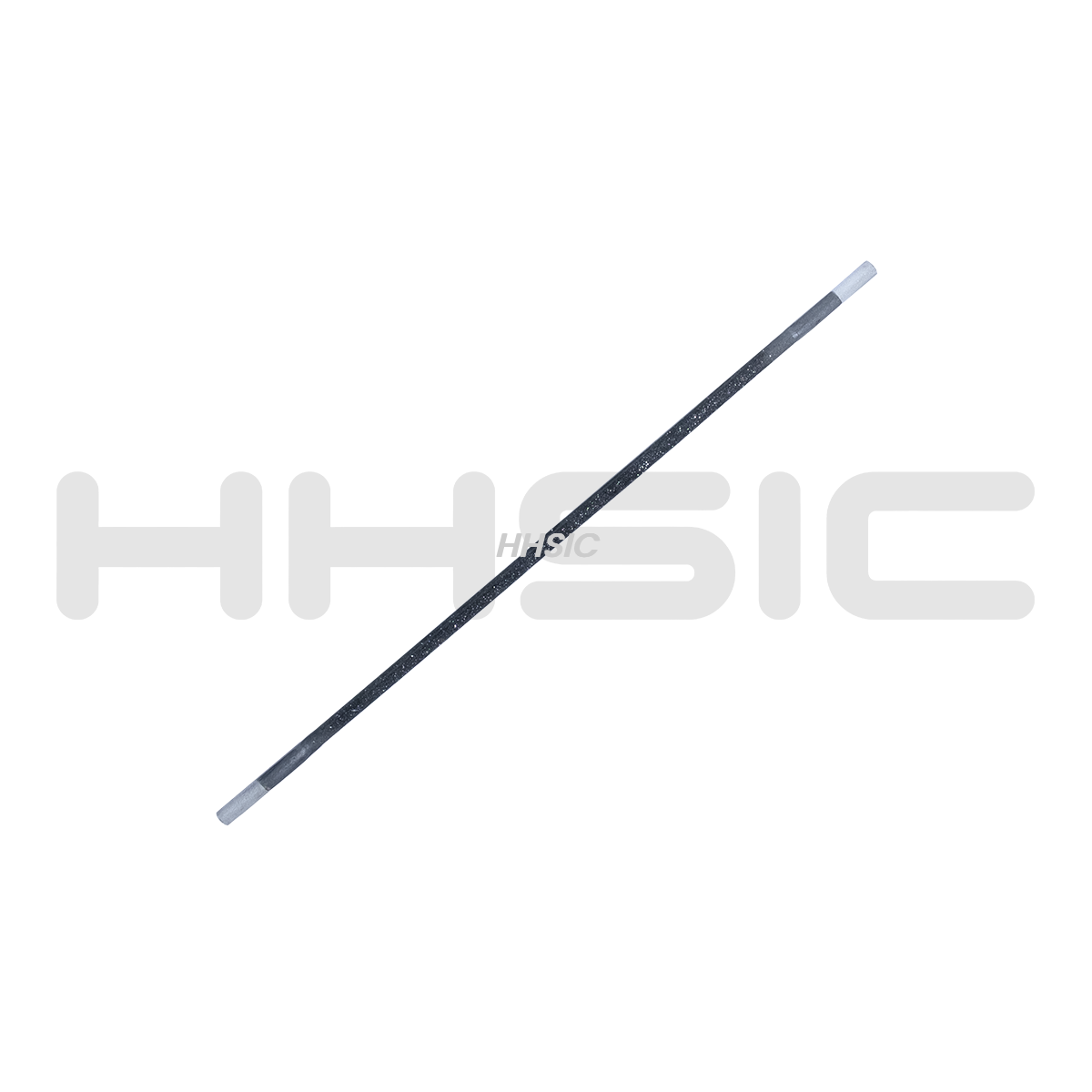

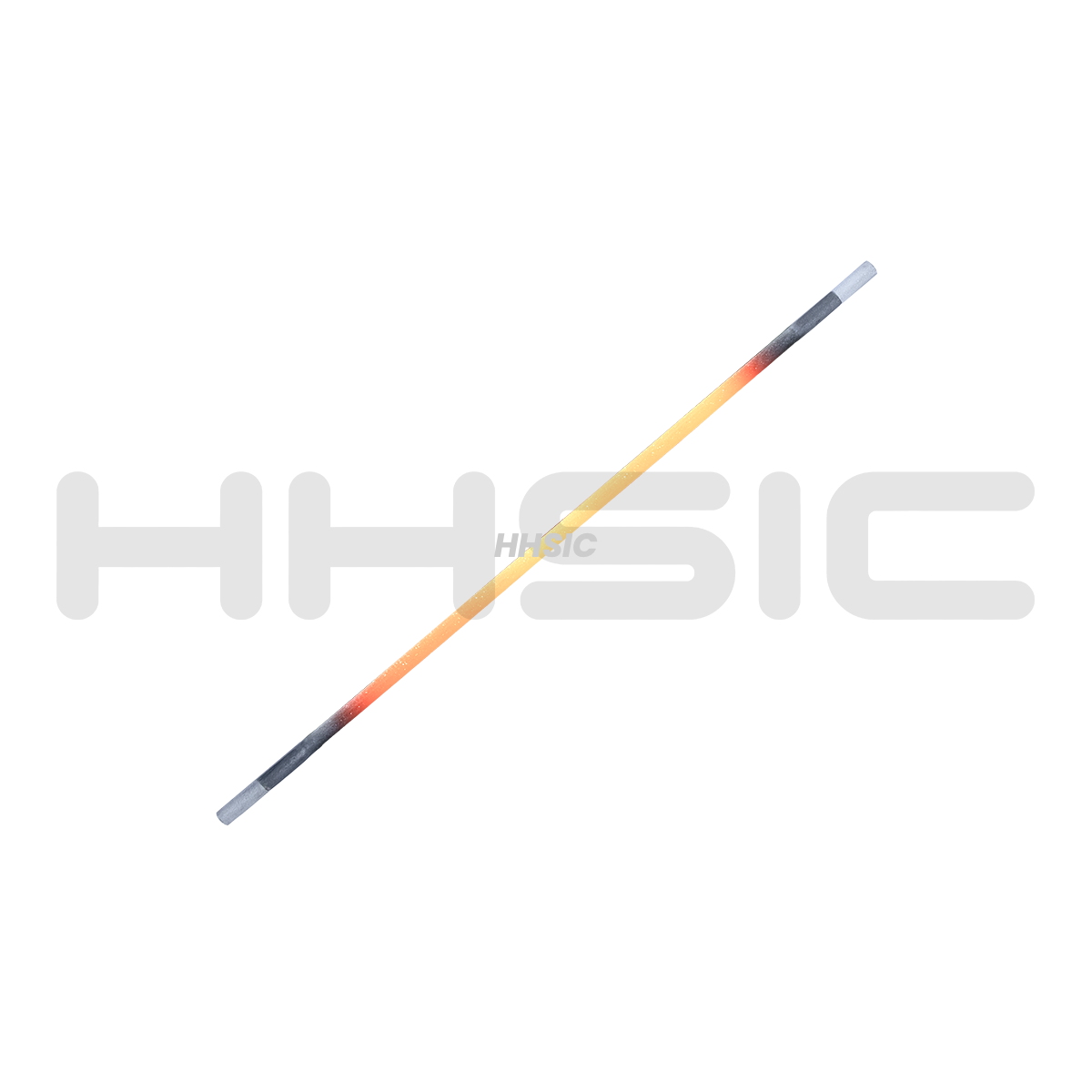

HHSIC Straight Silicon Carbide(SiC) Heating Elements( ED/Straight/ GD types) Manufactured from high-purity green silicon carbide (SiC) through recrystallization sintering at over 2200℃, straight silicon carbide heating elements feature a consistent diameter from the hot zone to the cold ends, offering simple structure, easy installation, and quick replacement. As non-metallic high-temperature heating elements, they can operate up to 1450℃ in oxidizing atmospheres, making them one of the most mature and widely used heating elements in industrial resistance furnaces, tunnel kilns, and heat treatment equipment.
Technical Parameter

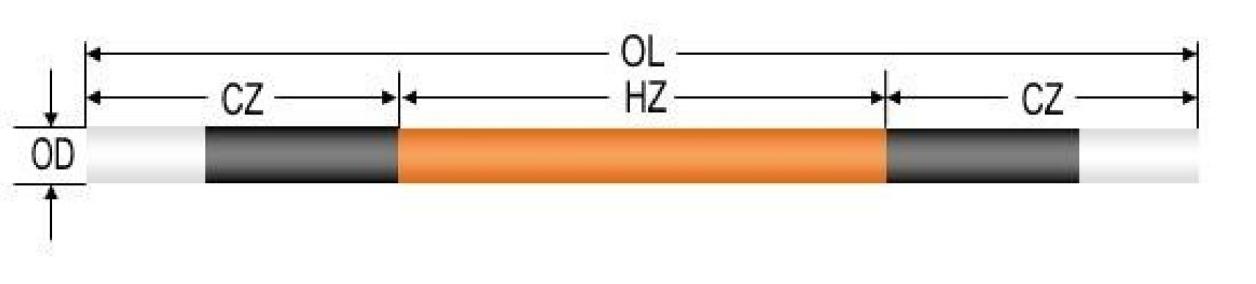

OD: Outer Diameter (mm)
HZ: Hot Zone Length (mm)
CZ: Cold Zone Length (mm)
OL: Overall Length (mm)
Resistance: Ω
Specification
Parameter | Specification Range |
Diameter | Φ8mm-φ54mm |
Hot Zone Length | 100mm-2700mm |
Cold End Length | 60mm-800mm |
Overall Length | Customized per request |
Resistance | 0.3Ω-8.6Ω（tested at 1050℃±50℃） |
Max Operating Temp | 1450℃（oxdizing atmosphere)） |
Density | 3.0-3.2g/cm3 |
Max Operating Temp | 1450℃（oxidizing atmosphere） |
Density | 3.0-3.2g/cm3 |
Thermal Conductivity | 20kcal/m·h·℃ |
Coefficient of Linear Expansion | 5×10-6/℃ |
HHSIC GD Type SiC Heating Elements
Diameter(OD,mm) | Hot Zone(HZ,mm) | Cold Zone(CZ,mm) | Overall Length(OL,mm) | Resistance(Ω) |
8 | 100-300 | 60-200 | 240-700 | 2.1-8.6 |
12 | 100-400 | 100-35 | 300-110 | 0.8-5.8 |
14 | 100-500 | 150-350 | 400-1200 | 0.7-5.6 |
16 | 200-600 | 200-350 | 600-1300 | 0.7-4.4 |
18 | 200-800 | 200-400 | 600-1650 | 0.7-5.8 |
20 | 200-800 | 250-600 | 700-2000 | 0.6-6.0 |
25 | 200-1200 | 250-700 | 700-2600 | 0.4-5.0 |
30 | 300-2000 | 250-800 | 800-3600 | 0.4-4.0 |
35 | 400-2000 | 250-800 | 900-3600 | 0.5-3.6 |
40 | 500-2700 | 250-800 | 1000-4300 | 0.5-3.4 |
45 | 500-3000 | 250-750 | 1000-4500 | 0.3-3.0 |
50 | 600-2500 | 300-750 | 1200-4000 | 0.3-2.5 |
54 | 600-2500 | 300-780 | 1200-4000 | 0.3-3.0 |
Key Advantages of GD Type SiC Heating Elements
· Uniform diameter for easy installation
· Excellent temperature resistance
· Flexible resistance matching
· Oxidation and corrosion resistance
· Long service life, low degradation
· Rapid heating, high thermal efficiency
Applications
Industry | Typical Equipment |
Metallurgy | Heat treatment furnaces,sintering furnaces,forging furnaces |
Ceramics | Tunnel kilns,roller kilns,electric kilns |
Glass | Glass melting furnaces,annealing furnaces |
Electronics | Diffusion furnaces,sintering furnaces |
Chemical | Reactors,drying equipment |
Laboratory | Muffle furnaces,high-temperature testing furnaces |
Installation & Operation Guidelines
Installation Clearance | Furnace hole diameter should be1.4-1.6 times the element diameter for thermal expansion |
Element Spacing | Center-to-center spacing≥4×hot zone diameter |
Voltage Regulation | Recommended to use voltage regulator;initial voltage at half of normal value,gradually increased |
Resistance Matching | Elements with similar resistance(deviation≤10% ) should be connected in the same circuit |
Moisture Protection | Store in dry environment to prevent decomposition of aluminum layer at cold ends |
Customization Services
We support non-standard customization based on drawings or parameters to meet various special operating conditions:
· Custom shapes: U-shape, W-shape, etc., tailored to furnace chamber structure
· Precise resistance matching: Specified resistance values as required
· Special sizes: Diameter and length beyond standard ranges
· Technical consultation: Free selection advice and installation guidance
For quotation or technical support, please provide:
· Diameter / Hot zone length / Overall length / Resistance value
· Operating temperature and atmosphere
· Drawings or special requirements
Equipment & Inspection
Production Equipment
Inspection Equipment
Note: Our silicon carbide heating elements undergo three rigorous quality inspections before being approved for shipment.
